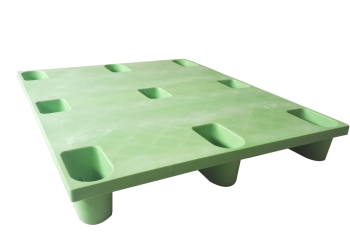

Plastic Pallet Moulding Machine

Plastic Pallet Moulding Machine

Plastic Pallet Moulding Machine Description

1. Less than 0.1 mm error on forming mold.

2. Detachable connection makes it easier to change molds, do maintenance and transportation.

3. Top motor and suspension structure saves occupied space and improve security.

Plastic pallet moulding machine model parameter
Model PM1000
Pressure 1000 tons (adjustable)
Hydraulic oil cylinder quantity 4
Pallet density 850-950 kg/m3
Shaping cycle 120 seconds
Pressure increasing time 350 seconds
Capacity 720 pcs/ 24 hours
Power 18.5 kW
Weight 22 tons
*All specifications and operating instructions accord to OSHA Standard.
*Mold and cylinder system are controlled by PLC programming.
*Note: for running the machine, it need 600L Hydraulic oil before start.

Designed and manufactured by Thoyu professional plasitc pallet moulding machine manufacturer. Thanks for your contact. We will make an efficient solution under comprehensive consideration.

The pallet machine includes Double mould press pallet machine and Single mould press pallet machine, this machine also can make wood pallet.

ThoYu pallet machinery ongoing research seeks to further increase the understanding of the relationships between the design and performance of wood pallets and the entire unit load, to obtain even greater resource efficiencies in the future.
Need a custom box? presswood pallets and cases to your specification:Just send us the size… It’s simple and fast!Get a quote before you order, normally the same working day.
ThoYu provides you semi-automatic and fully automatic wooden pallet production line. What’s more, you also can produce different types of pallet according to your need. At the same time, one set of wooden pallet machine equips with one set of the mold. If you want to produce different pallet, you just change the mold only.
Above all, Thoyu also provides molded plastic pallet machine and wood pallet block machine for you. In addition, we can provide all series of auxiliary equipment, such as wood chipperwood crusherwood drying machineglue mixing machine and so on.



Molded wood pallet machine for sale

Molded wood pallet machine for sale

Molded wood pallet machine is a new type wood pallet machine to produce molded wood pallets, also called presswood pallet machine,compressed wood pallet machine, the finally molded wood pallets is better than normal pallets,which is widely used in logistics and warehousing industry.

How does molded wood pallet machine works?

Molded wood pallet machine is our featured product,which meets the requirement of environmental protection,the molded wood pallet has been widely used in storage and transportation industries,which greatly improve the work efficiency.

molded wood pallet machine

wood pallet machine structure feature

  1. Detachable installation
  2. Mold can be customized
  3. Waste utilization, energy saving and environmental protection
  4. Fully automated production

Molded Wood Pallet

specification:400mm×600mm,600mm×800mm,800mm×1000mm,800mm×1200mm,1000mm×1200mm,1100mm×1100mm

Pallet weight varied from 10kg~22kg.

Loading capacity:2t~3t(dynamic load) and 6t~8t(static load)

Raw materials suitable for this molded pallet machine can be waste wood and scrap of the wood ,bamboo,straw ,waste kraftpaper and so on,the molded wood pallet making machine is a very good equipment for wood recycling.

We also provide pallet block machine which is used to produce wood blocks apply for pallets.

ThoYu pallet machinery ongoing research seeks to further increase the understanding of the relationships between the design and performance of wood pallets and the entire unit load, to obtain even greater resource efficiencies in the future.
Need a custom box? presswood pallets and cases to your specification:Just send us the size… It’s simple and fast!Get a quote before you order, normally the same working day.
ThoYu provides you semi-automatic and fully automatic wooden pallet production line. What’s more, you also can produce different types of pallet according to your need. At the same time, one set of wooden pallet machineequips with one set of the mold. If you want to produce different pallet, you just change the mold only.
Above all, Thoyu also provides molded plastic pallet machine and wood pallet block machine for you. In addition, we can provide all series of auxiliary equipment, such as wood chipperwood crusherwood drying machineglue mixing machine and so on.
fully automatic pallet making machine

fully automatic pallet making machine

fully automatic pallet making machine is used to produce wooden pallets,which is widely used in logistics and warehousing industry.The final pallet made by pallet making machine is compressed wood pallets,which is also called presswood pallets,which is better than normal pallets.

fully automatic pallet making machine

Advantages of fully automatic pallet making machine

  • High precision,
  • High durability,
  • High automation.
  • Better molds design.

Raw materials used in fully automatic pallet making machine

1. Waste wood, scrap of the wood, sawdust wood chips, wood shaving, wood chips, big chips, raw wood, burned forest, logs, wood board, branches, timber, wood flakes, and waste pallets, and so on.

2. Contenting rich fiber also can be used to produce the pallets, such as straw, waste kraft paper, bamboo, palm trees, coconut, softwood, wheat straw, bagasse, and miscanthus, and so on.

Compressed wood pallet features

  1. Low moisture content and constant intensity and rigidity. Wood pallet is non-hygroscopic and no deformation in the course.
  2. Stable dimension and no distortion and warping.
  3. High precision size and light weight. It is specifically designed reinforcing rib that ensures the intensity and production accuracy.
  4. Rounded design to prevent goods damage in the packaging and transportation process.
  5. Stacking type. A lot of pallets can be stacked together and the height of the 50 pieces of pallets is about 7 feet.
  6. Free fumigation and popular in the import and export transportation.

Thoyu Machinery Co.,Ltd is a 30 years pallet machine manufacturer in China,we provide wood pallet making machine,pallet block machine and plastic pallet making machine,which is top brand manufacturer in world,if you are interested in our company,you can email us or leave us a message,we will reply you as soon as possible.

presswood pallet making machine

presswood pallet making machine

presswood pallet making machine is a new type of one time forming machine manufacturing presswood pallet,the presswood pallet can be used for packing also for stock storage as bearers, and environmental friendly.

PRESSED WOOD PALLETS

  • Lightweight, economical pallets.
  • ISPM 15 exempt for export shipping.
  • Stack up to 50 pallets in 8 feet!
  • No nails to worry about.
  • save on truck space with smaller loads.
  • 800 x 600 mm most common pallet size in European markets.
  • Recyclable.
  • Larger quantity quotes available.

presswood pallet

  1. 400mm×600mm,600mm×800mm,800mm×1000mm,800mm×1200mm,1000mm×1200mm,1100mm×1100mm
  2. Presswood Pallet weight varied from 10kg~22kg.
  3. Loading capacity:2t~3t(dynamic load) and 6t~8t(static load)

presswood pallet making machine

presswood pallet making machine features

  1. Abandon the assembled framework hydraulic old traditional presswood pallet machine,because for a long term using,the problems of guide instability in process of pressing,inaccurate pressing of the upper mold and lower mold and deformation of framework,come out with the framework press machine in long-term high pressure and high temperature.
  2. We adopt the three beam Four-Column Guide Device structure,which solved the problems of guide instability and the deformation of framework.
  3. We adopt the design of crossbeam,which solved the problem of press inaccuracy of the upper and the lower mold.
  4. We adopt a new appearance design just to match the new revolution compressed wood pallet making machine.

The raw materials suitable for this presswood pallet making machine can be waste wood, scrap of the wood, bamboo, straw, waste kraftpaper and so on,presswood pallet machine is a very good equipment for wood recycling.

presswood pallet making machine model parameter

presswood pallet machine

Model PM1000 PM 1200
Pressure 1000t adjustable 1000t–1200t adjustable
Hydraulic oil cylinder quantity 4 4
Pallet density 850Kg/m3 850-950Kg/m3
Shaping cycle 450 seconds 450 seconds
Pressure increasing time 35 seconds 35 seconds
Capacity 160PCS/ 24 H 180PCS/ 24 H
Power 18.5KW 18.5KW
Weight 22T 22T

presswood pallet making machine

ThoYu pallet machinery ongoing research seeks to further increase the understanding of the relationships between the design and performance of wood pallets and the entire unit load, to obtain even greater resource efficiencies in the future.
Need a custom box? presswood pallets and cases to your specification:Just send us the size… It’s simple and fast!Get a quote before you order, normally the same working day.
ThoYu provides you semi-automatic and fully automatic wooden pallet production line. What’s more, you also can produce different types of pallet according to your need. At the same time, one set of wooden pallet machineequips with one set of the mold. If you want to produce different pallet, you just change the mold only.
Above all, Thoyu also provides molded plastic pallet machine and wood pallet block machine for you. In addition, we can provide all series of auxiliary equipment, such as wood chipperwood crusherwood drying machineglue mixing machine and so on.
compressed wood pallet machine

compressed wood pallet machine

compressed wood pallet machine is a pallet making machine,which is producing compressed wood pallet,also called wood pallet machine,presswood pallet machine and more.

what is compressed wood pallet

compressed wood pallet is made of raw materials such as wood shavings, plant straws, and so on. compressed wood pallet is one time press moulding with the overall structure of the board and 9 support feet. The upper surface of compressed wood pallet plate is flat and smooth, to meet the transport of various goods, the lower surface with the stiffener. It is that the longitudinal and horizontal balance of the board, nine feet can meet the four-way distribution by the fork, and compressed wood pallet is ideal for logistics transport.

compressed wood pallet

compressed wood pallet machine

compressed wood pallet machine is our featured product, which meets the requirement of environmental protection. With the advantages of light, non-toxic and tasteless, waterproof, anti-explosion and anti-skid, high recycling value and so on, the compressed wood pallet has been widely used in the storage and transportation of many industries such as food, tobacco, pharmaceuticals, chemical, machinery, electronic appliances, auto parts, beer and others, which greatly improve the work efficiency.

compressed wood pallet machine

how to make compressed wood pallet

  • step 1: gather the materials containing wood fiber and eliminate the impurities, then chip to chips.
  • step 2: crush the materials containing wood fiber.
  • step 3: dry the crushed materials to 5% moisture content.
  • step 4: evenly mix the dried materials with glue according to the certain proportion.
  • step 5: fill the mixed materials into the compressed wood pallet machine and press them into compressed wood pallet.

Anything containing wooden fiber could be used as the rew materials, so the wide sources of raw materials save the manufacturing costs of the product to a great extent.



Thanks for reading, if you are interested in our compressed wood pallet machine or pallet block machine, else have any feedback or questions, you can Email us: sales@palletblockmachine.com or leave a message to us. Waiting for you inquiry.
