where to buy double or three head presswood pallet block making machine?

Introduction of presswood pallet block making machine

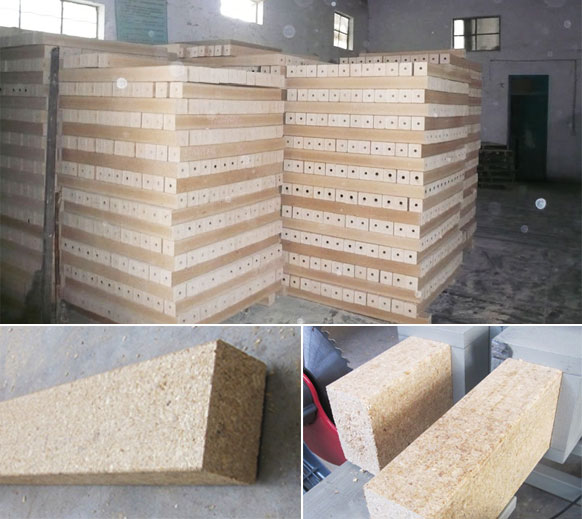

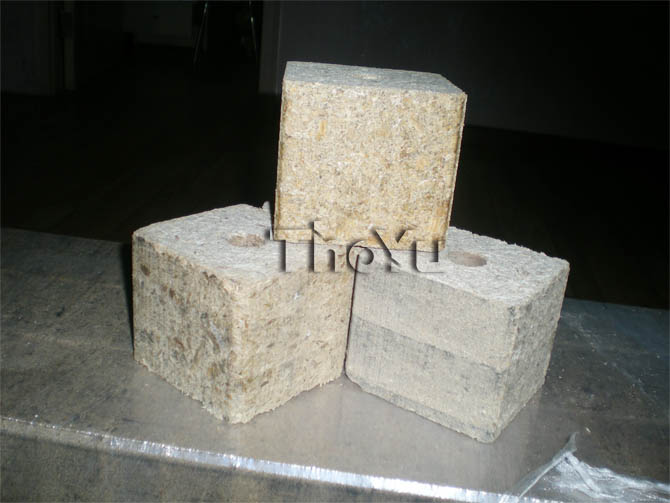

Mainly use wood sawdust and shaving or other scrap woods and others agricultural waste like cotton seeds, shell husks as raw materials, Mixing with glue in an certain ratio, extruding wood block by hot press heating pressure. The final wood block can be used as tray and foot pier replaced log, also can be used in export package, free fumigation, and free quarantine. Wood pallet hot press machine is one of the key part of the production line, including the dryer, the gluing machine, grinder and conveyor, manual or automatic cutting machine or saw. Our pallet press machine is uses hydraulic transmission, horizontal continuous out bags, speed high yield.Final block is insects prevention, and protection against termites and do not easy to burn;


Feature of presswood pallet block making machine

Generally four  wood block making machine are a production line, can equip the dryer, the gluing machine, grinder each. (dryer, gluing machine, grinder and so on supporting facility customer buys in addition).

Production personnels 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines)

have different kinds of production type, like 70*70, 80*80, 90*90, 100*100, 150*80, etc

different pallet size can be ordered accordingly

we can offer you the later machine like wood notcher, wood nailing machine, wood pallet cutter, etc.


Our wood notcher machine link:

wood pallet notcher

wood pallet cutting machine


Technical Parameters of presswood pallet block making machine

Model Double Head Four Head Six Head
Size 4800*780*1320 4900*800*1800 4900*940*1800
Capacity 2-5m3/24h 4-5m3/24h 6-8m3/24h
Density 550-600kg/m3 550-600kg/m3 550-600kg/m3
Weight 1050kg-1500kg 1500kg 2200Kg
Power 12-19kw 16-18kw 24kw


The final pallet block type can be adjusted according to user requirement.

presswood pallet block making machine presswood pallet block making machine compressed wood block presswood block


Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type our customers at home or abroad. With our experienced quality control team, we are trying to offer you the product with best quality. However, we do recognize that there do have small amount of the product which may got faulty or damaged for different reasons;

Q: How does your after-sale service work if the product got damaged?
A: In the guarantee time 24 months, our general after-sale service is changing the damaged parts, but if the damage could be repaired by slight cost, we would wait for the customer’s bill for the fix cost and refund this part of cost.(note: wear parts do not include.)
If you have any further question on wood pallet making machine, please feel free to contact me freely!

ThoYu pallet machinery ongoing research seeks to further increase the understanding of the relationships between the design and performance of wood pallets and the entire unit load, to obtain even greater resource efficiencies in the future.
Need a custom box? presswood pallets and cases to your specification:Just send us the size… It’s simple and fast!Get a quote before you order, normally the same working day.
ThoYu provides you semi-automatic and fully automatic wooden pallet production line. What’s more, you also can produce different types of pallet according to your need. At the same time, one set of wooden pallet machineequips with one set of the mold. If you want to produce different pallet, you just change the mold only.
Above all, Thoyu also provides molded plastic pallet machine and wood pallet block machine for you. In addition, we can provide all series of auxiliary equipment, such as wood chipperwood crusherwood drying machineglue mixing machine and so on.
