CNC Corrugated Roofing Pallet Nailing Machine

Introduction of CNC Corrugated Roofing Pallet Nailing Machine and Pallet Stacker

CNC Corrugated Roofing Pallet Nailing Machines and pallet stacker is suitable for the production process of wooden pallets nailing, stacked with automatic operation. So the advantage of CNC Corrugated Roofing Pallet Nailing Machine lies in low investment, economic space occupation, high efficiency and automaticity, easy to put, and carry pallet position. CNC Corrugated Roofing Pallet Nailing Machine and pallet stacker is equipped with the pallet product reversing and picking device. CNC Corrugated Roofing Pallet Nailer Machine has high automation and smooth and tight process flow. CNC Corrugated Roofing Pallet Nailing Machine can be equipped with an automatic palletizer and one-stop nailing and stacking production.

The whole machine of CNC Corrugated Roofing Pallet Nailer Machine and pallet stacker adopts a fully automatic program, the operating system adopts imported PLC control, the touch screen is simple to operate, the control is convenient, and the nailing position standard; compared with the domestic conventional production process, multiple processes are completed at one time, which greatly improves the work efficiency. CNC Corrugated Roofing Pallet Nailing Machine and pallet stacker is an adjustable, semiautomatic pallet nailing table for pallets of different sizes. And its ergonomic construction allows fast and easy modification of the pallet size. CNC Corrugated Roofing Pallet Nailing Machine and pallet stacker runs with high precision and small error, and can work continuously for ten thousand meters without error, which ensures the high consistency of working dimension.

CNC Corrugated Roofing Pallet Nailing Machine and pallet stacker adopts advanced CNC technology. And CNC Corrugated Roofing Pallet Nailer Machine is suitable for CP1-CP9 pallets (all kinds of pallets, American pallets, and Euro pallets). For the same type of the different size pallets, it needs to adjust the fixture; for different type pallets, it needs to change the fixture. CNC Corrugated Roofing Pallet Nailing Machine and pallet stacker mainly use to produce American pallets and European pallets. CNC Corrugated Roofing pallet nailing machine for sale device is designed according to the actual production situation of wooden pallets, economical and practical, and the most important thing is that production efficiency has been greatly improved.

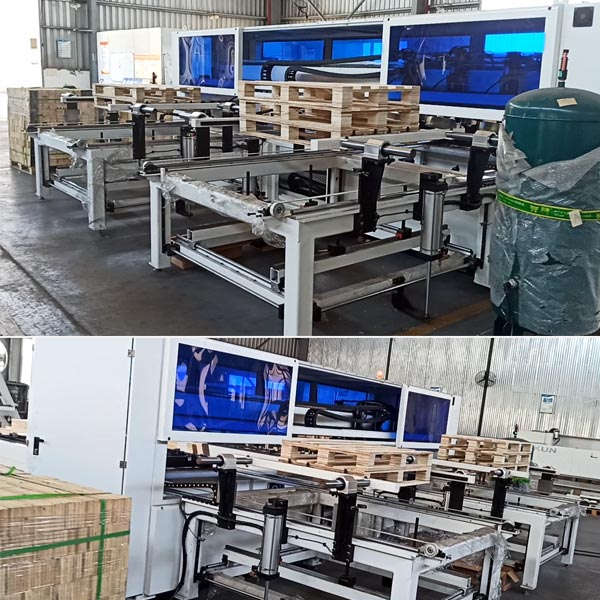

600 600 数控钉钉机48

600 600 数控钉钉机

Parameters of Customized European CNC Corrugated Roofing Pallet Nailing Machine

Model TY-201DD
Capacity 2 pallets/minute
Working mode Manual feeding/Auto Nailing/Auto stacking
Operating mode Industrial LCD computer
Operational mode Intelligent control system
Motor power servo motor
Max power 7.5 kW
Processing dimension (length, width, thickness) Customized
Feeding speed 80 m/min
Discharging speed 80 m/min
Speed of the nail gun 80 m/min
Number of the nail gun 9
Voltage 380 V, 50 Hz, 3P
Air compressor 100 L
Workers needs 2-3 workers
Nail size 32-90 mm
Overall dimensions 4540*5200*1985 mm
Weight 3500 kg

600 600 数控钉钉机16

CNC Corrugated Roofing Pallet Nailing Machine Character

1. Adjustable Pallet Size

CNC Corrugated Roofing Pallet Nailer Machine  is designed to produce American standard pallets, European standard pallet, and customized pallets.

2. Advanced Technology

CNC Corrugated Roofing Pallet Nailing Machine for sale is equipped with the finished pallet stacking device, which has a high automation degree, smooth and tight process flow, and can be equipped with automatic pallet stacking machine and one-stop nailing and stacking production.

3. Profit-Building

CNC Corrugated Roofing Pallet Nailing Machine adopts the fully automatic program, and the operating system adopts imported PLC control, the touch screen is simple to operate, with convenient control, and accurate nailing position. Besides, CNC Corrugated Roofing Pallet Nailing Machine is with multiple processes are completed at one time, which greatly improves the work efficiency.

4. Cost-Effective

Wood pallet nailing machine for sale and stacking are connected into the whole production line. After the nailing process is completed, the finished wooden pallets are automatically flipped onto the stacking platform and stacked neatly. So that it can achieve the effect of automatic receiving, which is convenient for forklift transportation; at the same time, saving the time of the automatic pallet nailing machine and the stacking operation. On account of the workpieces do not need to be stacked and rotated, and directly flipped into the lifting platform. It not only reduces the labor intensity but also reduces time and space for handling.

5. More Safe

CNC Corrugated Roofing Pallet Nailing Machine for sale has no specific requirements for the operator, and it is equipped with photoelectric switch, safety light curtain to ensure safe production.

The Automatic wood pallet nailing  production line includes Automatic wood pallet nailing machine, Automatic Pallet Stacking Machine, CNC wood sawPallet stringer slot making machine, Automatic pallet legs nailing machine, pallet block cutting machine, Pallet deck board chamfer making machine and so on.
