wood sawdust block machine from thoyu

wood sawdust block machine

1.Generally four pallet feet making machine are a production line, must provide the dryer, the gluing machine, grinder each. (dryer, gluing machine, grinder and so on supporting facility customer buys in addition).

2. Personnel disposition: pallet feet making machine Production personnels 4-5 person per shift. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).

3. pallet feet making machine cycle: After confirmation order form and payment advanced payment, 40 super craftmanship factory delivery.

4. pallet feet making machine investment recoupment period: 10— 12 months.

Our factory is responsible for the technical training, and provides the consummation the post-sale service.

wood sawdust block machine

wood sawdust block machine Technical parameter

We have many models of pallet feet making machine , different model can make different size. Pls choose the sizes u want to make and then we can let u know the price.

We recommend you to use wood shavings and sawdust to make pallets. If the raw material is not very big we do not suggest to crush frist.

wood block making machine

 wood sawdust block machine Technical parameter

(the wood block size can be customized)

Model Length and width of block Power (kW) Production efficiency(m³/24 hours) Dimension with saw (m) Weight (kg)

75-145 mm

14.26 2-3 8*0.6*1.5 1000

75-145 mm

22.26 4-6 8*0.7*1.5 1500


30.26 5-9 8*0.7*1.5 2000
 sawdust wood block wood pallet block making machine Thoyu pallet block production line

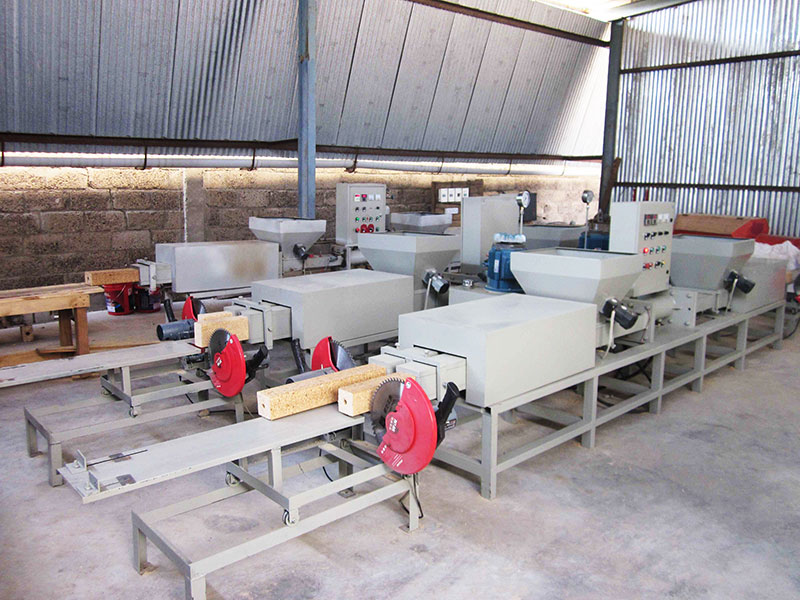

wood block making machine Production line
wood sawdust block machine

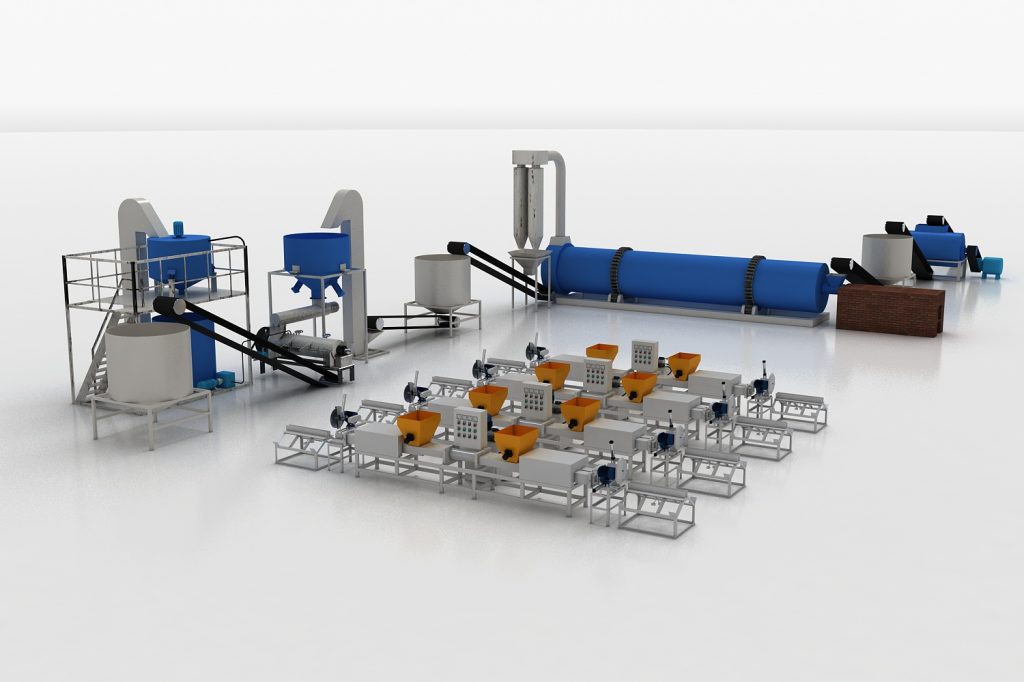

For the production line,there are mainly four machines:

1.Crusher or Wood shaving machine:

It is used for the raw materials in larger size.

Please use wood shavings and sawdust to make pallets. If the raw material is not very big, it is unnecessary to crush.

Click here show you crusher details .


2.Dryer machine

Drying the raw material to keep the 10%-15% moisture.

3.Gluing machine

Mixing the material together tighter for next step.

4.Compressed wood block making machine (main machine of the wood block production line)

Three types of models of the hot press machine

Click here show you compressed wood pallet making machine.

The biggest characteristics will create dust-free workshop after our improved.
