Three Channels Hot air stream wood chip dryer With Cyclone Dust Collector

Wheat straw Hot air stream wood chip dryer is applied for drying barley straw, oat straw, wheat straw, rye straw, straw, sorghum straw, corn straw, potato vines, beanstalks ( including materials like soybean straw, broad bean straw, pea straw, cowpea straw, lupine straw, peanut vine, etc.) According to the characteristic, production capacity, applying requirement, cost control, operating convenience of each biomass material, our company optimizes the drying technology.

Technical Parameters of wheat straw Hot air stream wood chip dryer

Model Capacity(t/d) Vaporization capacity(t/h) Early moisture(%) Final Moisture(%) Drying Temperature(℃) Total motor power(kw) Total weight(kg) Cover Area(m²)
TYGT1210 44.0-19.5 0.565 35-50% 12-15% 270±30℃ 28 13500 5m×15m
TYTG1409 46.5-20.5 0.595 34 15500 5m×15m
TYGT1615 88.0-39.0 1.130 45 19500 6m×22m
TYTG2010/3 144.5-63.5 1.850 78 25000 8m×18m
TYTG2210/3 154.0-67.5 1.976 85 27000 8m×18m
TYTG2510/3 193.0-83.5 2.427 110 35000 10m×18m
TYTG2512/3 227.0-100.0 2.912 125 38000 10m*20m
TYTG2912/3 268.0-120.0 3.432 135 43500 10m*22m

Wheat straw Hot air stream wood chip dryer features

This equipment is of a huge production, high efficiency, and energy saving, small floor space. Compared with common dryer machines, it saves energy by 30%-50%, thus saving energy and drying cost to the maximum.

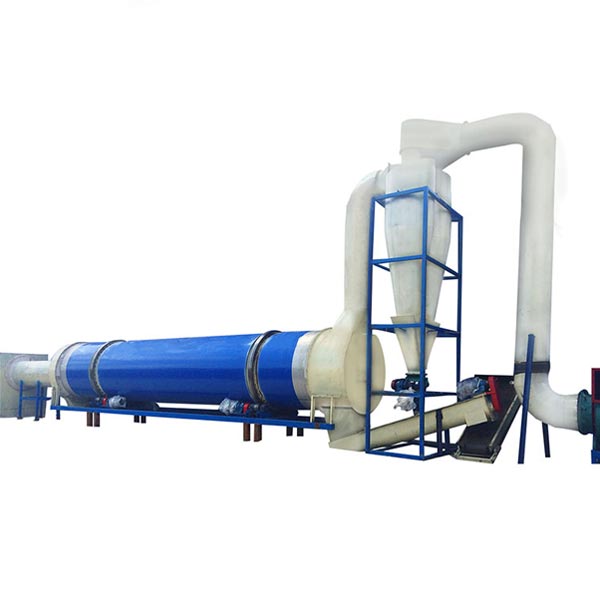

Rotary Drum Dryer

Wheat straw Hot air stream wood chip dryer working principle

wheat straw is fully dried in rotary drum and gets separated again before entering the conveying pipe for further drying. The baffler can keep the impurities out of the conveying pipe and ensures the high quality of dried straw. With the combined work of rotary drum and injection pipe, wet materials are fluidized and fully contacted with hot flow.

Wheat straw Hot air stream wood chip dryer configuration

wheat straw dryer is consists of heating furnace, feeding port, drum, filter drum, conveying pipe, cooling drum, and discharging port.

Above all, Thoyu also provides molded plastic pallet machine and wood pallet block machine for you. In addition, we can provide all series of auxiliary equipment, such as wood chipperwood crusher, drying machine, glue mixing machine and so on.
